Leitai SPD Type 1+2

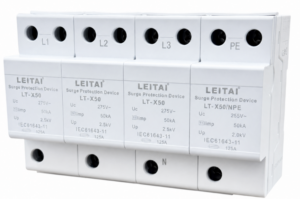

LT-X50/275-3+NPE
Test class according to IEC 61643-11
System: TN-C/TN-S/TT
Network: 3P4W
Uc: 275V AC
T1 Iimp (10/350 µs): 50kA
T2 In (8/20µs): 50kA
Imax (8/20µs): 200kA
Up : 2.5kV
Response Time: ≤100ns

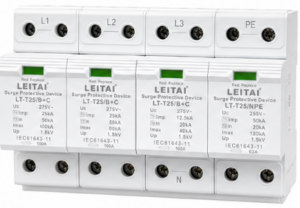

LT-T25/B+C/275-3+NPE
Test class according to IEC 61643-11
System: TN-C/TN-S/TT
Network: 3P4W
Uc: 275V AC
T1 Iimp (10/350 µs): 25kA
T2 In (8/20µs): 50kA
Imax (8/20µs): 100kA
Up : 1.8kV
Response Time: ≤25ns
Remote Signal: Yes
LT-T15/B+C/275-3+NPE
Test class according to IEC 61643-11
System: TN-C/TN-S/TT
Network: 3P4W
Uc: 275V AC
T1 Iimp (10/350 µs): 12.5kA
T2 In (8/20µs): 20kA
Imax (8/20µs): 40kA
Up : 1.8kV
Response Time: ≤25ns
Remote Signal: Yes
LT-T15/B+C/275-1+NPE
Test class according to IEC 61643-11
System: TN-C/TN-S/TT
Network: 1P2W
Uc: 275V AC
T1 Iimp (10/350 µs): 12.5kA
T2 In (8/20µs): 20kA
Imax (8/20µs): 40kA
Up : 1.8kV
Response Time: ≤25ns
Remote Signal: Yes
LT-T7.5/B+C/275-3+NPE
Test class according to IEC 61643-11
System: TN-C/TN-S/TT
Network: 3P4W
Uc: 275V AC
T1 Iimp (10/350 µs): 7.5kA
T2 In (8/20µs): 20kA
Imax (8/20µs): 50kA
Up : 1.5kV
Response Time: ≤25ns
Remote Signal: Yes

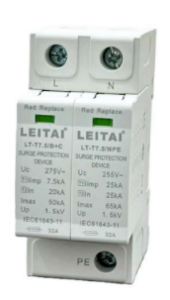

LT-T7.5/B+C/275-1+NPE
Test class according to IEC 61643-11
System: TN-C/TN-S/TT
Network: 1P2W
Uc: 275V AC
T1 Iimp (10/350 µs): 7.5kA
T2 In (8/20µs): 20kA
Imax (8/20µs): 50kA
Up : 1.5kV
Response Time: ≤25ns
Remote Signal: Yes
