offers high-performance analogue instruments engineered to measure abroad spectrum of electrical and electronic parameters.
All precision-built and robustly constructed to deliver reliable accuracy and clear readouts even in the challenging operating environments.

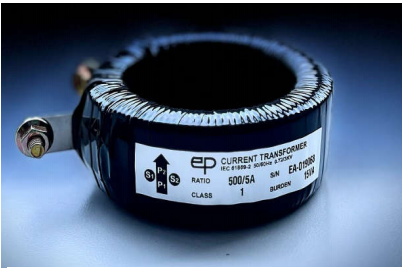

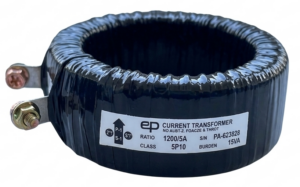

EP complete and comprehensive range of CT current transformers are the perfect solution for indirect measurement of the electrical parameters that characterize a system where reliability, accuracy and quality are required.
EP Detuned Harmonic Circuit Filter Reactor is used for Filtering harmonics and high frequency disturbance reduce high inrush current from parallel switching of capacitors & from power to capacitor banks and thus improves the operating source life span of the capacitor.
EP Power Factor Regulator (PFR), also known as Automatic Power Factor Correction Controller, is a high-accuracy intelligent electronic device that maintains a desired power factor (PF) in an electrical network by automatically controlling the connection and disconnection of capacitor banks. EP PFR-8 (8 steps) and EP PFR-16 (16 steps) to handle inductive loads that consume reactive power.
EP AMMETER
…/5A …/1A CT Operated / Direct Ammeter
Accuracy Class: 1.5
Meter Sizes (mm): 96x96 / 72x72 / 48x48 / 144x144
Models: ep-96A / ep-72A / ep-48A / ep-144A
Pointer Degree: 90° , (ew series 240°)
EP VOLTMETER
Scales: 500V / 300V / 150V / 15kV etc
Accuracy Class: 1.5
Meter Sizes (mm): 96x96 / 72x72 / 48x48 / 144x144
Models: ep-96V / ep-72V / ep-48V / ep-144V
Pointer Degree: 90° , (ew series 240°)
EP MAXIMUM DEMAND AMMETER
(…/5A CT Operated) 15 min 2 Pointers
Accuracy Class: 3
Meter Sizes (mm): 96x96 / 72x72
Models: ep-96MD2 / ep-72MD2
Pointer Degree: 90°
